Lead time: 2,5 to 5 weeks
Quantity: series of up to 20 000 units

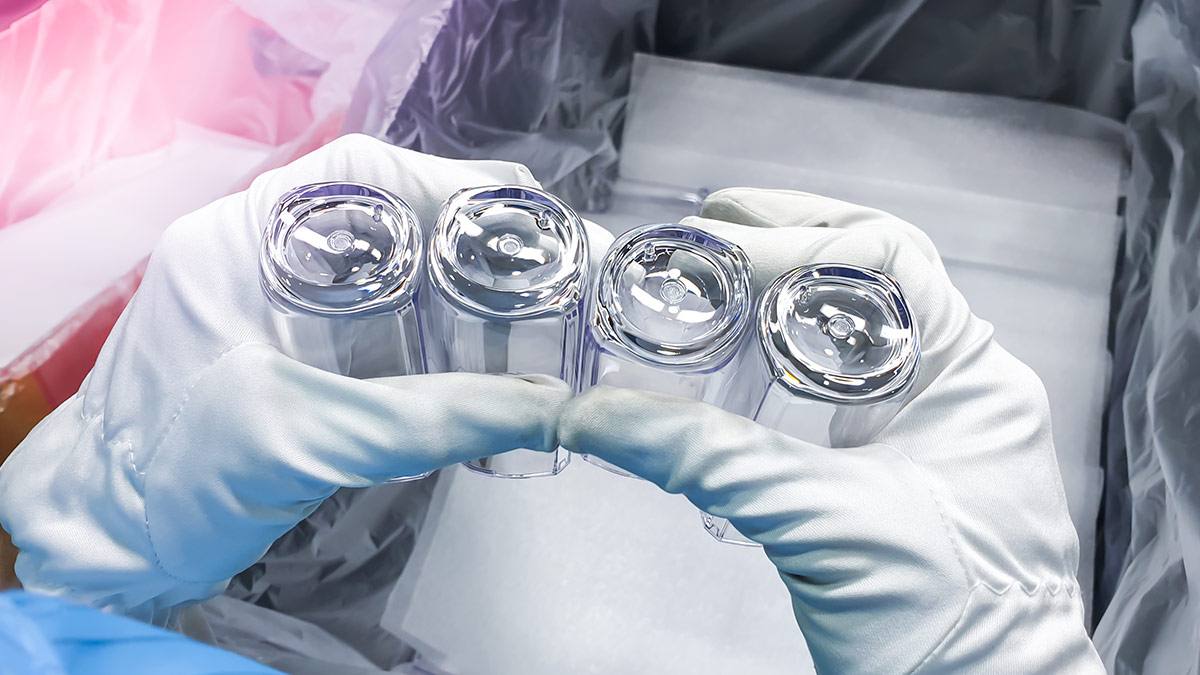

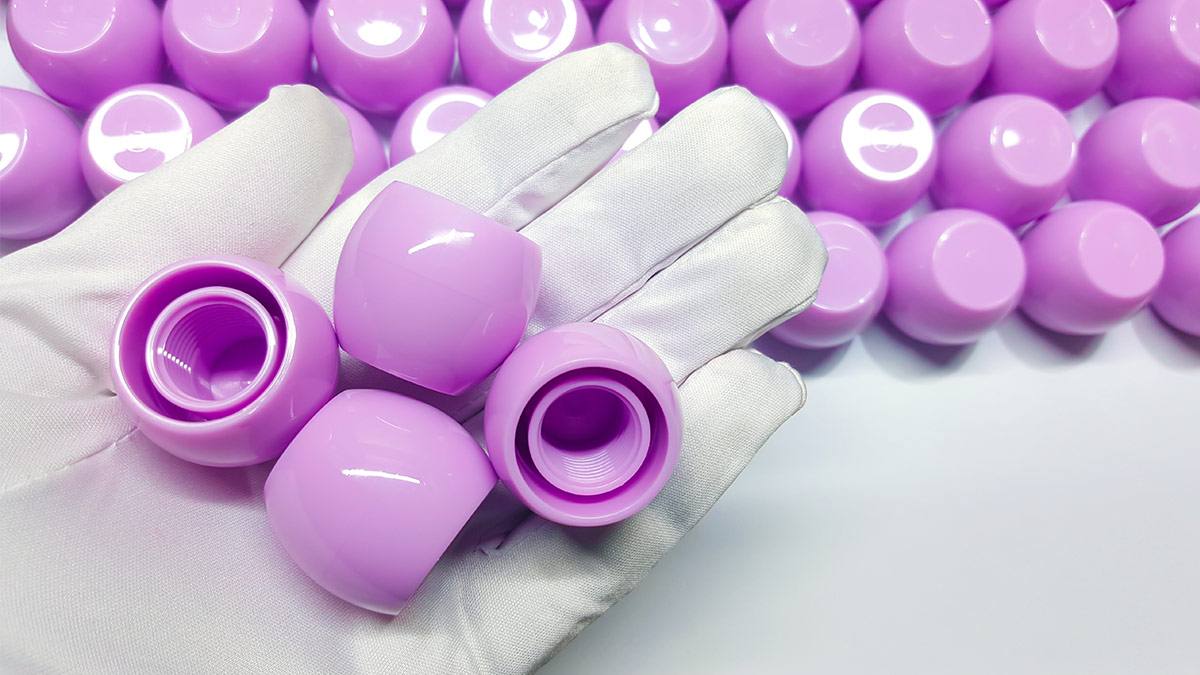

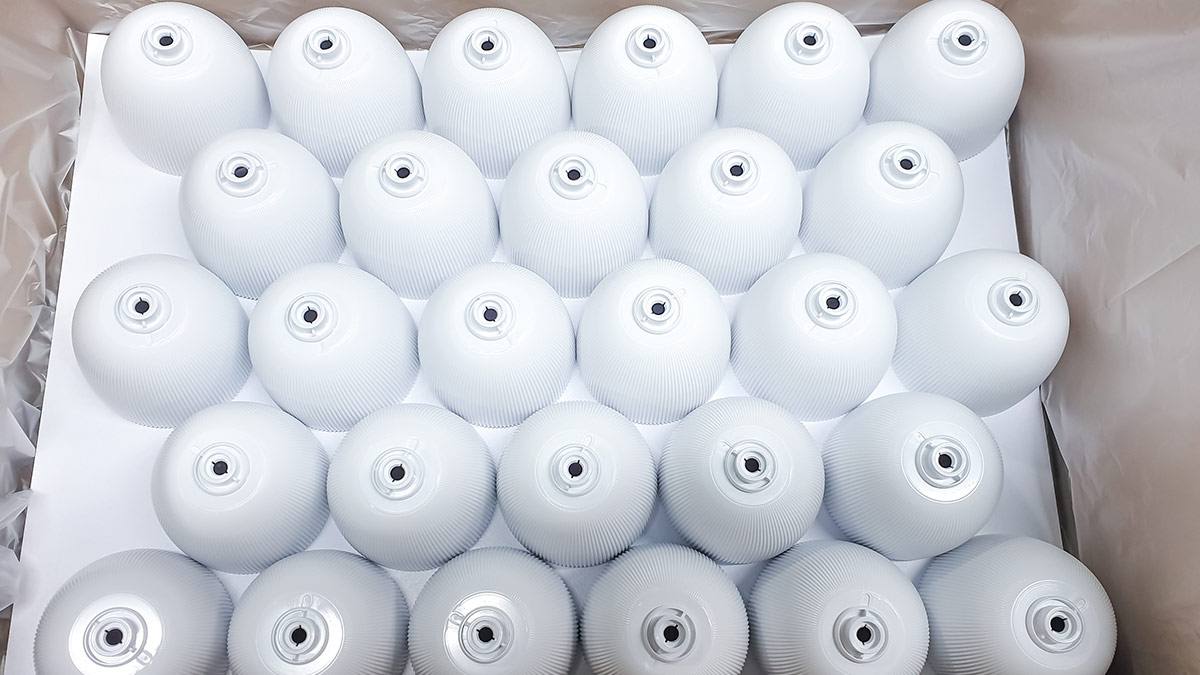

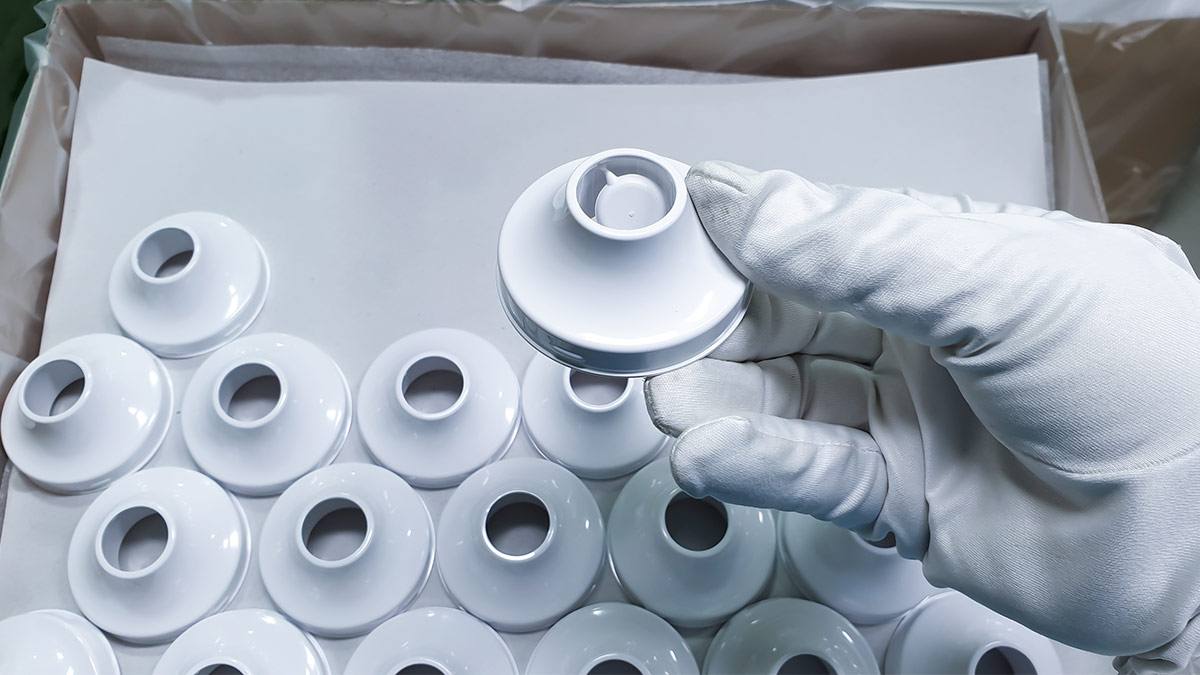

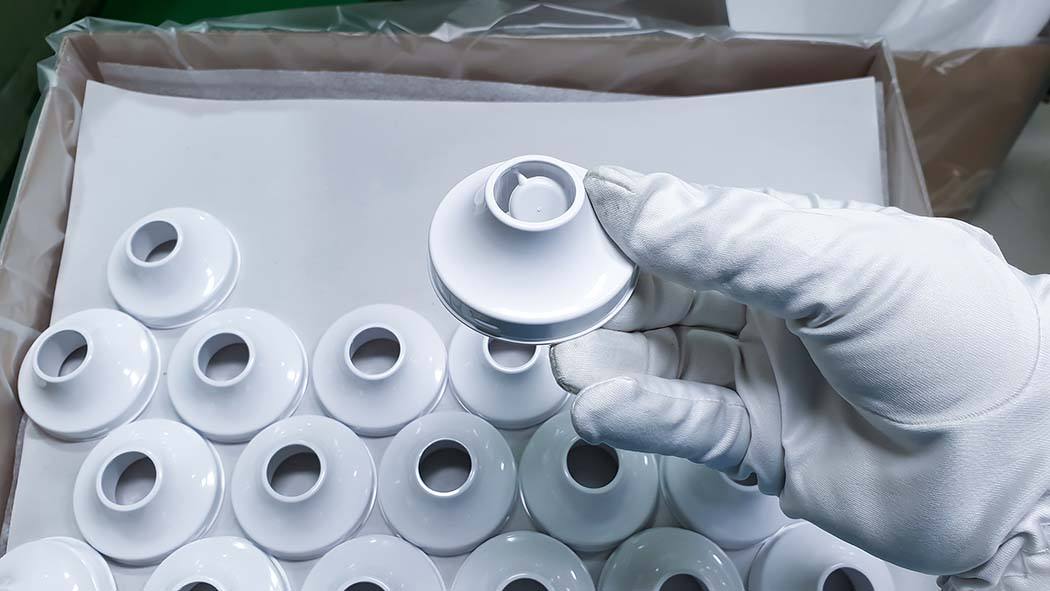

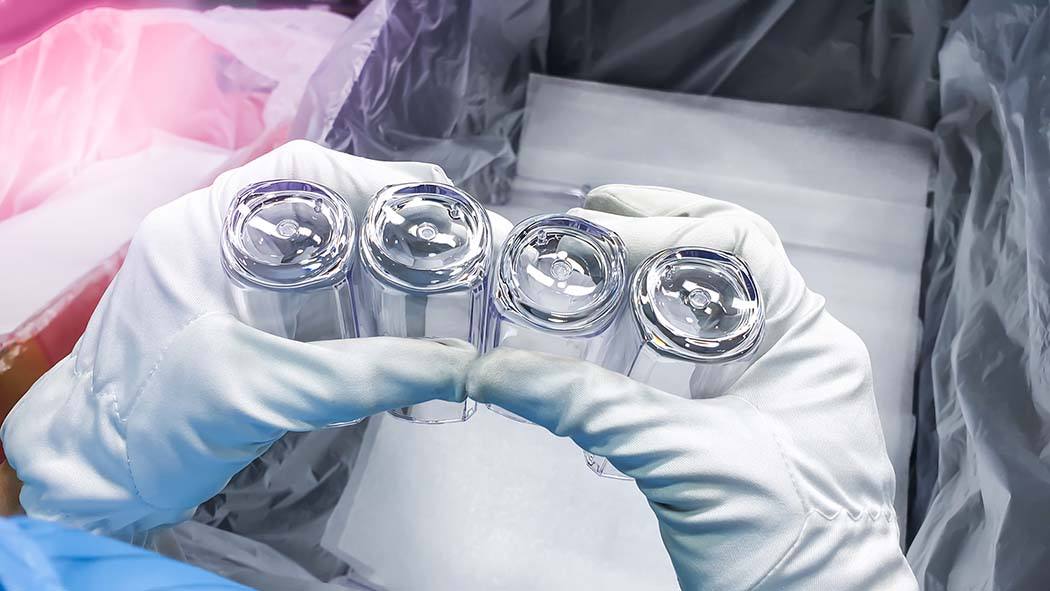

We offer an injection molding service to produce high quality low-volume production plastic parts. We use steel molds, which can be single or multi-cavity, to manufacture parts with very good repeatability and precision.
We store and maintain your tooling until the end of its life, allowing you to reuse it to produce small runs of parts whenever you want.
Plastic injection molding is a process for producing plastic parts from steel molds. This production technique involves heating a polymer in granular form until it becomes sufficiently viscous to be injected into the mold. Once injected, the material cools and hardens in contact with the heat-regulated steel, creating a rigid part. This process has many advantages, including fast production, high accuracy and quality, which is ideal for small batch production.
Injection materials:
Rigid plastics
Flexible plastics
Silicons
You can supply us your material
Compression Materials:
Overmolding:
Ultrasonic welding
General tolerances:
We can provide you compliance certificates for your low-volume production.
Do not hesitate to ask us during your requests:
CCPU 2.2: Compliance with the request + dimensional report
CCPU 3.1: Compliance with the request + dimensional report + data about the mechanical properties and the chemical composition of the material
We offer you a support service throughout your order process. You will have a single, highly experienced contact person to assist you with your project from A to Z. This proximity translates into personalised advice and a tailormade approach to your specifications, allowing us to react quickly to your request.
Our large production capacity enables us to meet your small batch production needs in a very short time, regardless of the size of the parts and the precision required, so that you do not have any shortages in your supply chain. Our team of project managers and our customer account page allow us to keep you informed of the progress of your order in real time.
We are pleased to be able to provide you with parts that meet your requirements through our quality control service. With a dedicated team to ensure that all your parts meet your quality requirements. We provide you with a certificate of conformity for all your low-volume production orders.
SPI standard
Surface finish
Finishing method
Suitable materials
A-1
Mirror finish
Grade #3 Diamond Buff, 6000 Grit
0.012 to 0.025
Acrylic (PMMA)
A-2
High glossy finish
Grade #6 Diamond Buff, 3000 Grit
0.025 to 0.05
Acrylic (PMMA), Polycarbonate (PC)
A-3
Normal glossy finish
Grade #15 Diamond Buff, 1200 Grit
0.05 to 0.10
Acrylic (PMMA), Polycarbonate (PC), ABS, Nylon (PA), Polystyrene (PS)
B-1
Fine semi-glossy finish
600 Grit Paper
0.05 to 0.10
Acrylic (PMMA), Polycarbonate (PC), ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE
B-2
Medium semi-glossy finish
400 Grit Paper
0.10 to 0.15
Acrylic (PMMA), Polycarbonate (PC), ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE
B-3
Normal semi-glossy finish
320 Grit Paper
0.28 to 0.32
Acrylic (PMMA), ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE
C-1
Fine Matte finish
600 Grit Stone
0.35 to 0.40
Acrylic (PMMA), ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE, Polyurethane (TPU), EPDM, SEBS, Silicone
C-2
Medium Matte finish
400 Grit Stone
0.45 to 0.55
Acrylic (PMMA), ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE, Polyurethane (TPU), EPDM, SEBS, Silicone
C-3
Normal Matte finish
320 Grit Stone
0.63 to 0.70
Acrylic (PMMA), ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE, Polyurethane (TPU), EPDM, SEBS, Silicone
D-1
Satin Textured finish
Dry Blast Glass Bead #11
0.80 to 1.00
Polycarbonate (PC), ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE, Polyurethane (TPU), EPDM, SEBS, Silicone
D-2
Dull Textured finish
Dry Blast #240 Oxide
1.00 to 2.80
ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE, Polyurethane (TPU), EPDM, SEBS, Silicone
D-3
Rough Textured finish
Dry Blast #24 Oxide
3.20 to 18.0
ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE, Polyurethane (TPU), EPDM, SEBS, Silicone
VDI Value
Surface finish
Finishing method
Surface roughness (Ra μm)
12
Fine Matte finish
600 Grit Stone
0.40
15
Medium Matte finish
400 Grit Stone
0.55
18
Satin Textured finish
Dry Blast Glass Bead #11
0.80
21
Dull Textured finish
Dry Blast #240 Oxide
1.12
24
Dull Textured finish
Dry Blast #240 Oxide
1.60
27
Dull Textured finish
Dry Blast #240 Oxide
2.24
30
Rough Textured finish
Dry Blast #24 Oxide
3.15
33
Rough Textured finish
Dry Blast #24 Oxide
4.50
36
Rough Textured finish
Dry Blast #24 Oxide
6.30
39
Rough Textured finish
Dry Blast #24 Oxide
9.00
42
Rough Textured finish
Dry Blast #24 Oxide
12.50
45
Rough Textured finish
Dry Blast #24 Oxide
18.00

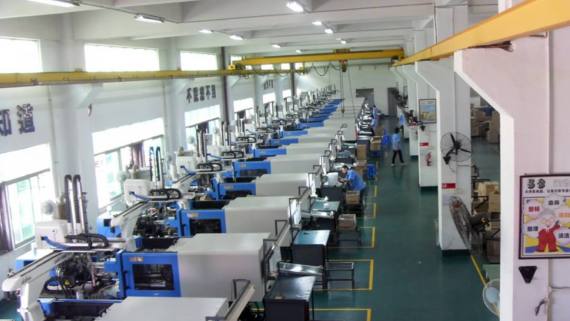

Our machinery and tools:
