Injection & compression molding

Prototypes & Preseries

Lead time: 2,5 to 5 weeks (including transport)

From 10 to 10 000 units

Injection molding service

Our plastic injection molding service allows you to reduce the costs and lead times of your pre-production and prototype parts, using our single or multi-cavity steel molds. Take advantage of our expertise and responsiveness in injection molding to produce your prototypes, choosing the material and finish of your choice.

What is injection molding?

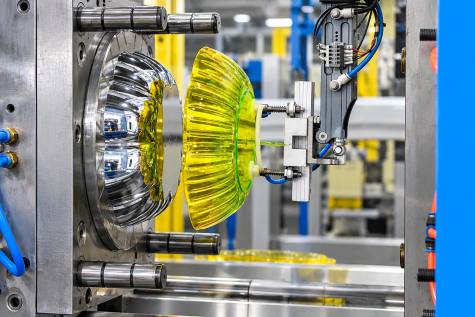

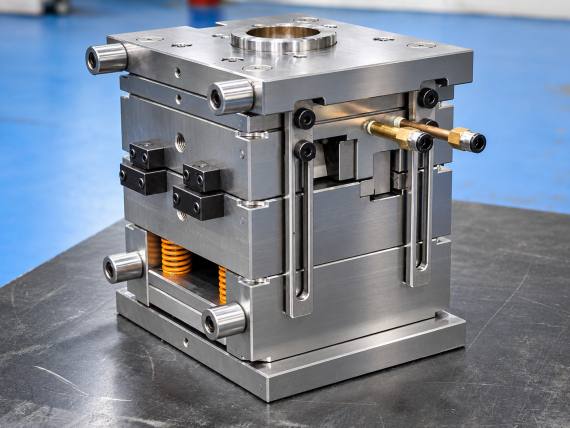

Plastic injection molding is a process for producing plastic parts from steel molds. This production technique involves heating a polymer in granular form until it becomes sufficiently viscous to be injected into the mold. Once injected, the material cools and hardens in contact with the heat-regulated steel, creating a rigid part. The first validation parts allow you to check the conformity of the mold before production.

Injection materials:

  • All possible grades, filled or otherwise
  • SEBS
  • TPU
  • TPE
  • EPDM
  • Different material grades

Compression Materials:

  • Nitrile NBR
  • EPDM
  • Silicone

Overmolding:

  • Plastic overmolding

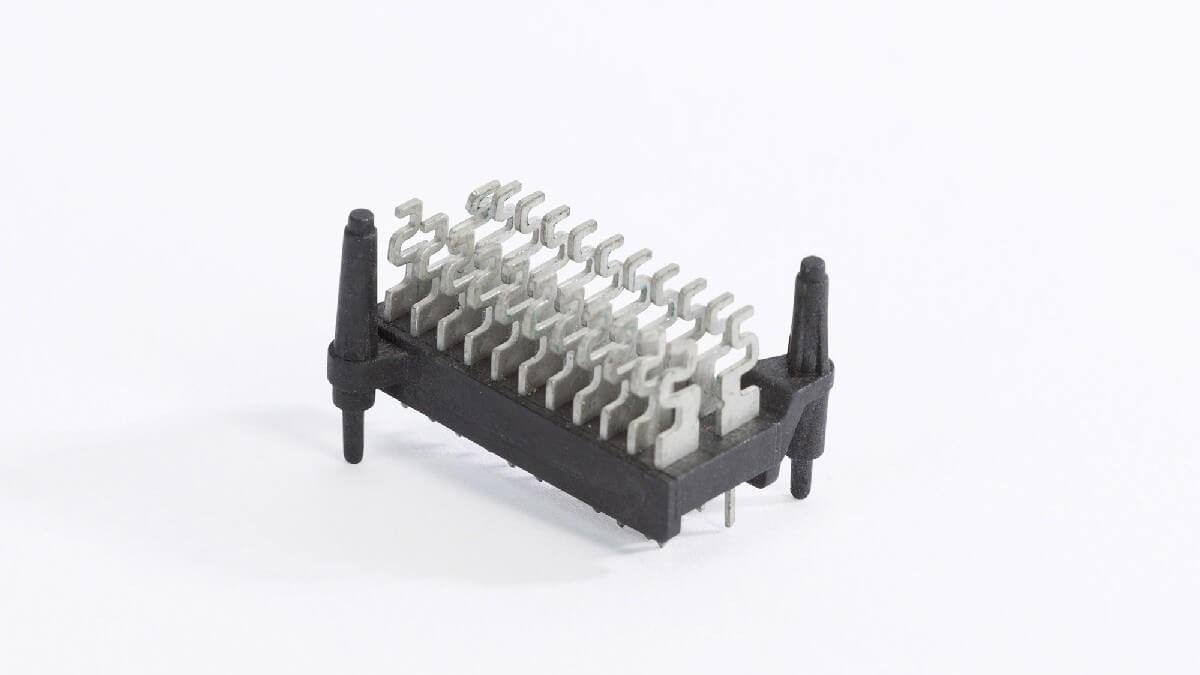

  • Metal insert overmolding

General tolerances:

  • NFT 58000 French standards, normal or reduced class

Ultrasonic welding

  • Welding of 2 injected parts

Our advantages:

  • Personalised follow-up with a single contact person

We offer you a support service throughout your order process. You will have a single, highly experienced contact person to assist you with your project from A to Z. This proximity translates into personalised advice and a tailormade approach to your specifications, allowing us to react quickly to your request.


  • Fast turnaround times

We have a production plant and partners equipped with the latest machinery, which enables us to respond quickly to your needs. We guarantee to deliver your parts as soon as possible. Our team of project managers and our customer area allow us to keep you informed of the progress of your order in real time.


  • Parts that meet the requirements

To meet your most demanding requirements, EC International Group has a quality control department that meets the latest standards in force. All your orders are carefully checked and verified by a qualified team to ensure compliance with your requirements.


Surface finishing:

SPI surface finish standard

SPI standard

Surface finish

Finishing method

Surface roughness
(Ra μm)

Suitable materials

A-1

Mirror finish

Grade #3 Diamond Buff, 6000 Grit

0.012 to 0.025

Acrylic (PMMA)

A-2

High glossy finish

Grade #6 Diamond Buff, 3000 Grit

0.025 to 0.05

Acrylic (PMMA), Polycarbonate (PC)

A-3

Normal glossy finish

Grade #15 Diamond Buff, 1200 Grit

0.05 to 0.10

Acrylic (PMMA), Polycarbonate (PC), ABS, Nylon (PA), Polystyrene (PS)

B-1

Fine semi-glossy finish

600 Grit Paper

0.05 to 0.10

Acrylic (PMMA), Polycarbonate (PC), ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE

B-2

Medium semi-glossy finish

400 Grit Paper

0.10 to 0.15

Acrylic (PMMA), Polycarbonate (PC), ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE

B-3

Normal semi-glossy finish

320 Grit Paper

0.28 to 0.32

Acrylic (PMMA), ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE

C-1

Fine Matte finish

600 Grit Stone

0.35 to 0.40

Acrylic (PMMA), ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE, Polyurethane (TPU), EPDM, SEBS, Silicone

C-2

Medium Matte finish

400 Grit Stone

0.45 to 0.55

Acrylic (PMMA), ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE, Polyurethane (TPU), EPDM, SEBS, Silicone

C-3

Normal Matte finish

320 Grit Stone

0.63 to 0.70

Acrylic (PMMA), ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE, Polyurethane (TPU), EPDM, SEBS, Silicone

D-1

Satin Textured finish

Dry Blast Glass Bead #11

0.80 to 1.00

Polycarbonate (PC), ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE, Polyurethane (TPU), EPDM, SEBS, Silicone

D-2

Dull Textured finish

Dry Blast #240 Oxide

1.00 to 2.80

ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE, Polyurethane (TPU), EPDM, SEBS, Silicone

D-3

Rough Textured finish

Dry Blast #24 Oxide

3.20 to 18.0

ABS, Nylon (PA), Polystyrene (PS), Polypropylene (PP), HDPE, Polyurethane (TPU), EPDM, SEBS, Silicone

VDI 3400 texture standard

VDI Value

Surface finish

Finishing method

Surface roughness (Ra μm)

12

Fine Matte finish

600 Grit Stone

0.40

15

Medium Matte finish

400 Grit Stone

0.55

18

Satin Textured finish

Dry Blast Glass Bead #11

0.80

21

Dull Textured finish

Dry Blast #240 Oxide

1.12

24

Dull Textured finish

Dry Blast #240 Oxide

1.60

27

Dull Textured finish

Dry Blast #240 Oxide

2.24

30

Rough Textured finish

Dry Blast #24 Oxide

3.15

33

Rough Textured finish

Dry Blast #24 Oxide

4.50

36

Rough Textured finish

Dry Blast #24 Oxide

6.30

39

Rough Textured finish

Dry Blast #24 Oxide

9.00

42

Rough Textured finish

Dry Blast #24 Oxide

12.50

45

Rough Textured finish

Dry Blast #24 Oxide

18.00

Finishes:

  • Color options (close to the RAL reference of your choice)
  • RAL or Pantone paint references of your choice

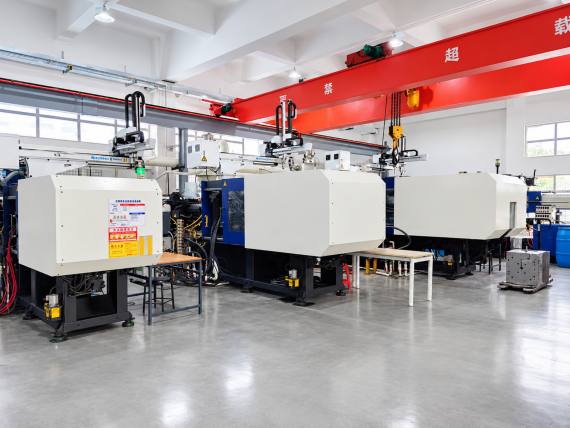

Our machinery and tools:

  • Over 150 3- and 5-axis machining centres
  • 25 to 4,000 ton presses
  • EDM machines (wire cutting & sinking)
  • Grinders
Chargement...
Injection & compression molding

Procedure

  • Mold DFM analysis validation by the customer
  • Option: rheological study
  • Delivery of 5 to 10 sample parts for customer validation (T1 to Tn samples)
  • Injection of final parts following mold adjustments and validation of Tn samples

Possible validations with injection

  • Functional
  • Thermal
  • Mechanical
  • Aesthetic
