EC International Group

CNC machining

Low-volume production
Plastic & metal

Delivery: 1 to 3 weeks (including transport)

Quantity: until 300 units

Machining / Precision machining

Our latest generation cnc machining cernters allow to you to get low-volume production, in plastic and metal, in short delivery and wigth optimal production quality.

Our high production capacity gives us the possibility to meet yours production needs in a very short time, whatever the size of the parts and the precision required, in order to avoid any shorttage in your supply chain.

Parts dimensions:

Parts that can measure 1200x700x650mm maximum.

Tolerances:

  • Standard: ISO 2768-mK
  • Accuracy: +/- 0.01 mm (metal) and +/- 0.05 mm (plastic)
  • Bores
  • Shafts

Certificates of conformity:

We can provide you certificates of conformity for your low-volume production.
Do not hesitate to ask us during your requests:


CCPU 2.1 : Compliance with the request

CCPU 2.2 : Compliance with the request + dimensionnal report

CCPU 3.1 : Compliance with the request + dimensionnal report + data about the mecanical properties and the chemical composition of the material

Materials:

  • ABS
  • PMMA (opaque or high polished transparent)
  • PC (opaque or high polished transparent)
  • PC 30% glass-fiber-filled
  • POM
  • POM 30% glass-fiber-filled
  • PP
  • PP 30% glass-fiber-filled
  • ABS/PC
  • PA6
  • PA66
  • PA6 30% glass-fiber-filled
  • PBT
  • PBT 30% glass-fiber-filled
  • PPS
  • PEEK
  • ULTEM 1000
  • ULTEM 2300
  • PEI
  • PPSU
  • PTFE (TEFLON)
  • … (non-exhaustive list)
  • Steel S235
  • Steel S275
  • Steel S355
  • Steel C45
  • Steel C55
  • Steel C35
  • Steel 25CD4
  • Steel 35CD4
  • Steel 42CD4
  • Steel 45CD4
  • Steel 40CMD8
  • Steel 45NCD16
  • Steel Z140 CDV12
  • Steel Z160 CDV12
  • Steel Z35 CD17
  • Steel 110 kg
  • Steel XC45
  • Steel XC48
  • … (non-exhaustive list)
  • Standard brass
  • Brass Cu Zn 15
  • Brass Cw 614N
  • Brass Cu Zn 39 Pb2
  • Brass Cu Zn 40 Pb2
  • ... (non-exhaustive list)

Magnesium machining

Bronze machining

  • Aluminum 6061
  • Aluminum 6060
  • Aluminum 6082
  • Aluminum 7075
  • Aluminum 2017A
  • Aluminum 2024
  • Aluminum 5060
  • Aluminum 5050
  • Aluminum 2027
  • Aluminum 6063
  • Aluminum 5083
  • Aluminum 1060
  • Aluminum XXXX T1 to T6
  • … (non-exhaustive list)
  • Stainless steel 303
  • Stainless steel 304
  • Stainless steel 304L
  • Stainless steel 316
  • Stainless steel 316L
  • Stainless steel 301 (spring-tempered stainless steel)
  • Stainless steel 17-4 PH
  • Stainless steel 430 (magnetic)
  • … (non-exhaustive list)
  • Standard copper
  • Copper Beryllium
  • Copper ETP
  • … (non-exhaustive list)

Titanium machining

Zamak machining

If your material reference is not listed above, please do not hesitate to ask us for it.

Finishing options:

  • From a RAL or PANTONE reference, or a sample
  • All kinds of finishing: Satin, matte, glossy, soft touch, textured and chrome-style paint
  • Chrome bath (glossy, matte or satin appearance)
  • Chrome bath with electrical conductivity
  • Smooth or shiny appearance
  • Transparent for PMMA and PC parts
  • Manual polishing or steam polishing for details on optical parts
  • Standard zinc plating
  • White zinc plating
  • Yellow zinc plating
  • Tin plating
  • Nickel plating
  • Galvanization
  • AG5 silver plating
  • Oxidizing
  • Burnishing
  • Nitriding
  • Quenching and tempering (HRC)
  • ... non-exhaustive list
  • Ra 6,3 to Ra 0,1 µm


  • Glossy or matte appearance in various colors
  • Granular appearance (similar to your chosen VDI 3400 reference)
  • Brushed appearance

Printing / Tampography / Silk printing

Metallization

Laser engraving

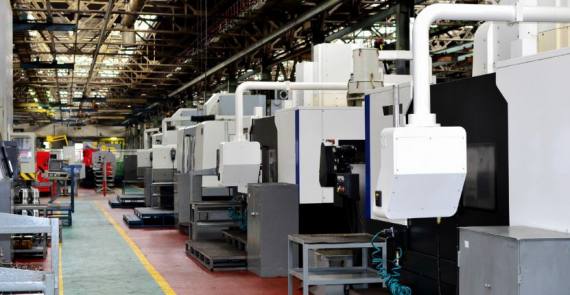

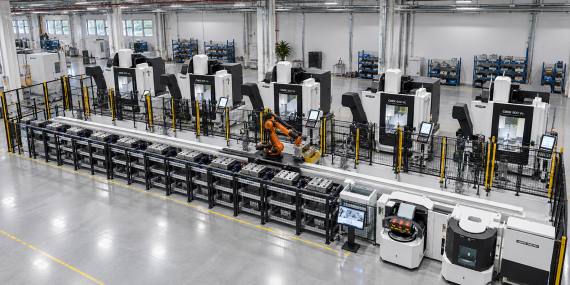

Our machining centers, our machinery and our tools:

  • Over 150 3- and 5-axis machining centers
  • 20 turning centers
  • EDM machines (wire cutting & sinking)

Cnc machining benefits
on your low-volume production

  • High quality
  • Repeatability
  • Quickness
  • Accuracy
  • No tooling investment
